Configure a connection for ESO's EHR

You can easily integrate FH CAD Monitor with ESO's EHR module.

Note: Before doing the steps below, contact FH support and ask for an agency login and a CAD key. You will enter this information as part of the configuration steps in FH CAD Monitor.

  1. (If you selected Run as a Service during installation) Stop the FH CAD Monitor service.

    Information on stopping the FH CAD Monitor service is available in Stop a service.

  2. At the bottom of the FIREHOUSE Software CAD Monitor window, click Options.

    The FIREHOUSE Software CAD Monitor Options dialog box appears, displaying the General tab.

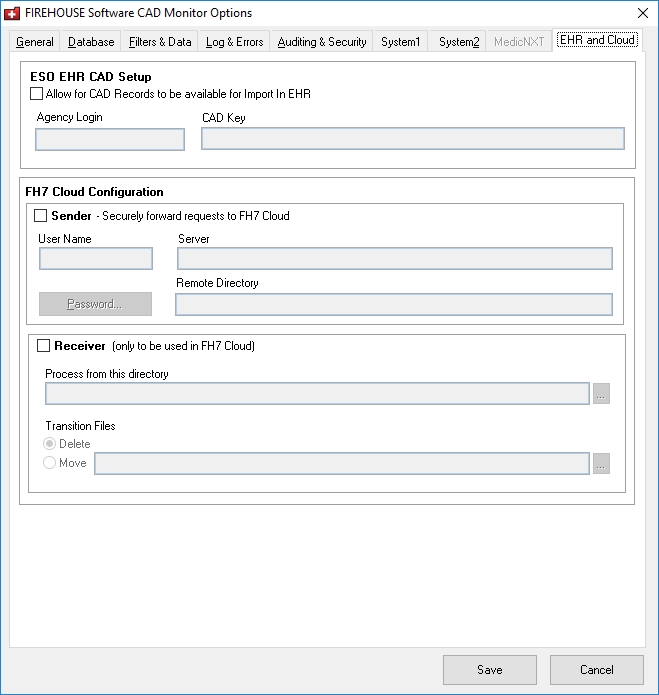

  3. Click the EHR and Cloud tab.

    Note: Disregard the FH7 Cloud Configuration section on this tab. The FH Cloud team uses this section to configure integrations between FH CAD Monitor and FIREHOUSE Software on the FH Cloud.

  4. Under ESO EHR CAD Setup, select or clear Allow for CAD Records to be available to Import In EHR to indicate whether or not you want to import the CAD data into EHR.

    When selected, Agency Login and CAD Key activate.

  5. In Agency Login and CAD Key, type the agency key and CAD key information you received from FH support.

  6. Click Save.

    The FIREHOUSE Software CAD Monitor Options dialog box closes.

  7. (If you stopped the FH CAD Monitor service earlier) Restart the FH CAD Monitor service.

    Information on starting the FH CAD Monitor service is available in Start a service.
