Map CAD system fields to FIREHOUSE Software database fields

Your CAD system's data may not include all of the same data fields that the FIREHOUSE Software database includes. You may need to specify where a specific field is stored in the CAD data, and define where it should go in the FIREHOUSE Software database. This process is referred to as field mapping.

Note: The steps below should be performed after an FH CAD Monitor update runs, because additional fields and default mappings may be added by the update.

1. (If you selected Run as a Service during installation) Stop the FH CAD Monitor service.

   Information on stopping the FH CAD Monitor service is available in Stop a service.

2. At the bottom of the FIREHOUSE Software CAD Monitor window, click Options.

   The FIREHOUSE Software CAD Monitor Options dialog box appears, displaying the General tab.

3. Click the Filters & Data tab.

   Note: The Unit Status and Query Additional Incident Columns sections do not appear on the tab for all CAD systems.



4. Under Field Mapping, click Field Mapping.

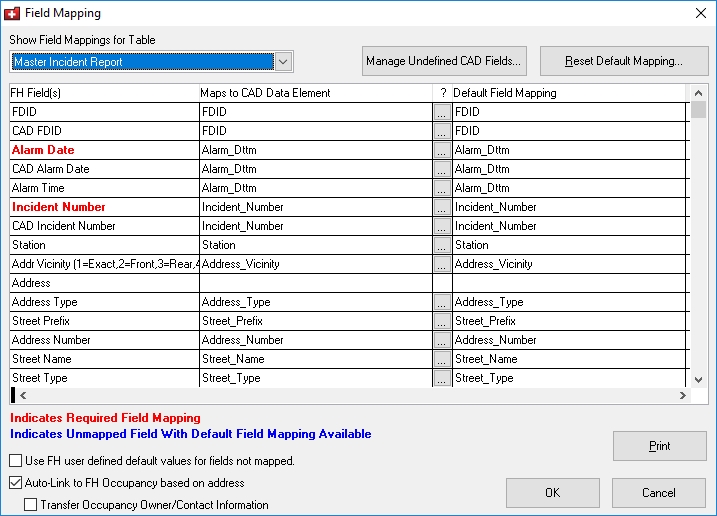

   The Field Mapping dialog box appears.



   FIREHOUSE Software fields are color-coded. When a FIREHOUSE Software field value is red, a mapping must be specified. Blue indicates that a default mapping available, but is not being used. The Default Field Mapping column indicates what the default mapping is, and does not need to be changed.

5. From Show Field Mappings for Table, select the FIREHOUSE Software table whose field mappings you want to examine.

   Note: The list of tables available in the menu varies, depending on the CAD system you selected during installation.

6. Review the list of default mappings that appear, and the color coding of those mappings.

7. For any row in the table that you want to create or edit for, in the Maps to CAD Data Element column, click the cell for that row, and then select a value from the menu that appears.

   Indicate that the FIREHOUSE Software field should not be populated with CAD data.

   • Choose No Mapping.
   Reset the FIREHOUSE Software field to its default (either to No Mapping or to a CAD data field).

   • Choose Reset to Default Mapping.
   Select a CAD data field and map it to an FIREHOUSE Software database field.

   1. Choose Select a CAD field from the list.

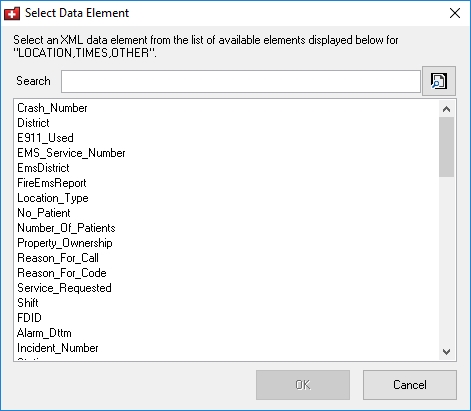

      The Select Data Element dialog box appears.



   2. Select the CAD data field you want to map to the FIREHOUSE Software database field, and then click OK.
   Define a literal value or an expression, and map it to a FIREHOUSE Software database field.

   1. Choose Specify a literal value or expression.

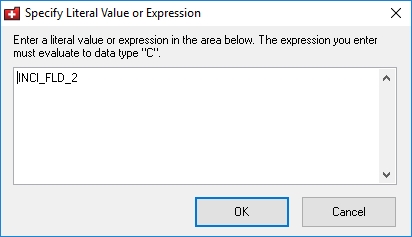

      The Specify Literal Value or Expression dialog box appears.



   2. In the dialog box, type the literal value or expression to map to the FIREHOUSE Software database field, and then click OK.

      Expressions can include literal values, CAD data field names, and functions

   Caution: Some CAD systems do not send the department FDID number. Without the FDID code, an import of units cannot establish the link between the incident record and any responding unit records. In these cases, for the FDID row, in the Maps to CAD Data Element column, set the field mapping for FDID to No Mapping, and in the lower left corner of the dialog box, select Use FH user defined default values for fields not mapped. This combination supplies the FDID code from FIREHOUSE Software's workstation location setting.

8. (Generic XML files) Map undefined fields from the CAD data to FIREHOUSE Software database fields.

   The Manage Undefined CAD Fields button appears in the upper right corner of the dialog box.

   1. Click Manage Undefined CAD Fields.

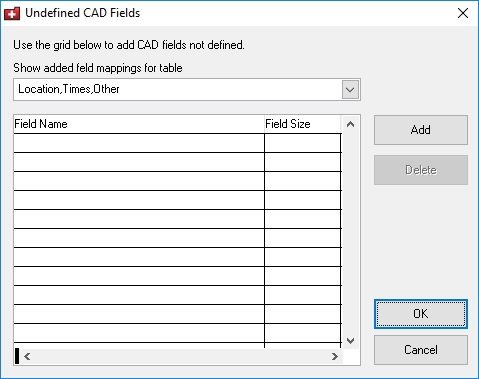

      The Undefined CAD Fields dialog box appears.



   2. From Show added field mappings for table, select the CAD table containing the undefined CAD field that you need to map.

   3. Click Add.

      A cell in the Field Name column highlights to indicate that this is a new row.

   4. In the highlighted cell, type the name of the data field in the CAD data.
   5. For the same row, in the Field Size column, type the size of the field in the CAD data.

   6. Click OK.

9. (Generic ASCII CAD Data Import) Redefine field mappings from the CAD data to FIREHOUSE Software database fields.

   The Manage Redefined CAD Fields button appears in the upper right corner of the dialog box.

   1. Click Manage Redefined CAD Fields.

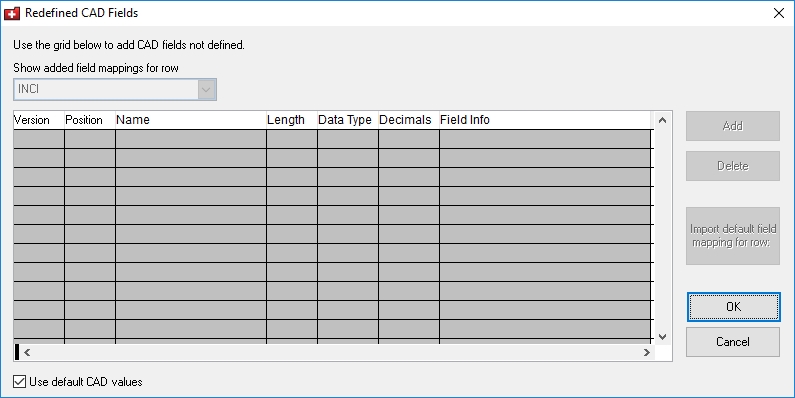

      The Redefined CAD Fields dialog box appears.



   2. Clear Use Default CAD Values.

      On the right side of the dialog box, Add and Import default field mapping for row activate.

   3. From Show added field mappings for table, select the CAD table containing the CAD field that you need to map.

   4. Do any of the following.

      Import a field mapping for the row.

      1. Click Import default field mapping for row.

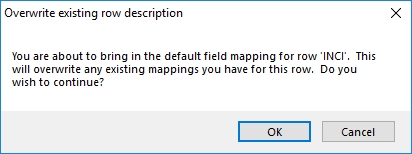

         The Overwrite Existing Row Description dialog box appears.



      2. Click OK.

         The rows in the dialog box populate with default mapping values for the table you selected.

      Add row mapping values into the table.

      1. Click Add.

         A new row appears at the top of the table, populated with default mapping values.

      2. Click in each cell in the new row, and either type the appropriate value or select the appropriate option from the menu that appears, for mapping the incoming CAD element in the table.
      Remove a row of mapped values from the table.

      1. Select the row of mapped values you want to delete by clicking in any cell in the row.

      2. Click Delete.

         The row disappears from the dialog box, and is removed from the field mapping.

   5. Click OK.

10. (Optional, but recommended) Print the field mapping for the selected table, for reference purposes.

    1. Click Print to print the field mapping for the table selected under Show Field Mappings for Table.

       A standard print dialog box appears.

    2. Specify parameters in the dialog box for sending the printout of the field mapping to your printer as normal.
    3. Click OK.

11. Select or clear Use FH user defined default values for fields not mapped to indicate whether or not to populate FIREHOUSE Software fields with FIREHOUSE Software defaults, when nothing or No Mapping is selected for the FIREHOUSE Software database field.

    Note: Only static FIREHOUSE Software default values are applied to records; dynamic default values based on FIREHOUSE Software client workstation or system settings are ignored. Advanced FIREHOUSE Software functions (example: SQLMax, SQLMin, XLate) or default values that refer to application objects unknown to FH CAD Monitor (example: goApp, goApp.Workstation) do not add values to empty or unmapped fields. Native FoxPro functions such as TRIM() and LEFT() are applied to records.

12. Select or clear Auto-Link to FH Occupancy based on address to indicate whether or not to use FIREHOUSE Software occupancy record field values in incident records created from CAD records.

    When selected, and when a FIREHOUSE Software record is created from a CAD record, FIREHOUSE Software occupancy information defaults into the incident record when there is an exact match between the CAD values and FIREHOUSE Software values in the Number (NUMBER), Prefix (ST_PREFIX), Street/Highway (STREET), Type (ST_TYPE), Suffix (ST_SUFFIX), Address Line 2 (ADDR_2), City (CITY), State (STATE), ZIP Code (ZIP), and Apt Room(Apt/Room/Suite) fields.

    If no match is found, the values in all fields except Apt Room (Apt/Room/Suite) are compared again. If no match is found, the values are compared again without Address Line 2 (ADDR_2). The final matching attempt excludes City (City).

    When a match is found, State (STATE), ZIP Code (ZIP), District (DISTRICT), Census Tract (CENSUS), County (COUNTY), Township (TOWNSHIP), Zone (ZONE), Latitude (LATITUDE), Longitude (LONGITUDE), Specific Use (PROP_USE), EMS Incidents only: Property Ownership (PROP_OWN), and Mixed Use (MIXED_USE) from the FIREHOUSE Software occupancy record are defaulted into the incident report unless the field is mapped.

    When a match is found to multiple occupancy records, where Apt_Room is the only item that did not compare, the first occupancy record is used.

13. Select or clear Transfer Occupancy Owner/Contact Information to indicate whether or not owner and contact information in the CAD data should be imported into FIREHOUSE Software or ESO's EHR.
14. Click OK.

15. Click Save.

    The FIREHOUSE Software CAD Monitor Options dialog box closes.

16. (If you stopped the FH CAD Monitor service earlier) Restart the FH CAD Monitor service.

    Information on starting the FH CAD Monitor service is available in Start a service.
