Tracking port

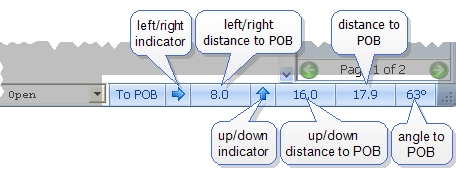

The tracking port is located in the lower right corner of the interface, and displays drawing or to POB (point of beginning) information for the currently defined area.

Drawn provides real-time feedback for the line you are currently drawing. It is helpful to glance down to verify the rise and run of angles, or total distance, to ensure accuracy.

To POB appears after you anchor each line. The information in the tracking port is the last two lines (left/right and up/down) necessary to close the area from the current cursor location. This is extremely helpful in squaring your areas.
